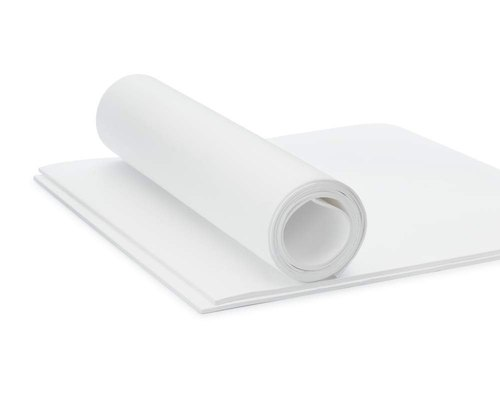

Eptfe Sheet

About This Project

The Expanded PTFE gasket sheet is produced by our company consists of 100% PTFE. Its multidirectional stretching structure provides unique properties. Even in harsh working conditions, the material exhibits incredibly low compressibility and creep properties. And to accord with different application scales, our company can provide corresponding product size pursuant to customer’s needs.
1.Excellent chemical resistance
2.Soft, flexible, light clamping force to seal
3.Easy cutting, normal scissors or knives only can handle
4.High-intensity, fibrosis,3 D structure which greatly reduce the cold flow creep

Physical Properties :

1.Lenght Tensile Strength : 17.0 MPa
2.Cross Tensile Strength : 27.0 MPa
3.Compressive Stength :14.7 MPa
4.Max Compressive Strength : 20.0 MPa
5.Gravity        :     0.9g/cm3
6.Operating Temperature : -240 -260

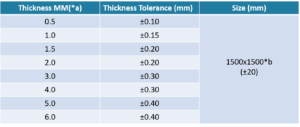

SPECIFICATIONS

Application

Valve Sealing

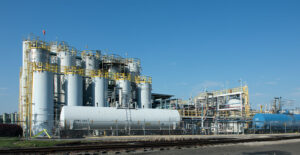

Chemistry & Chemical Industry
Food safety
